In the factorization or reduction routines, the work distribution becomes uneven as the computation progresses. A larger block size results in greater load imbalance, but reduces the frequency of communication between processes. There is, therefore, a tradeoff between load imbalance and communication startup cost, which can be controlled by varying the block size.

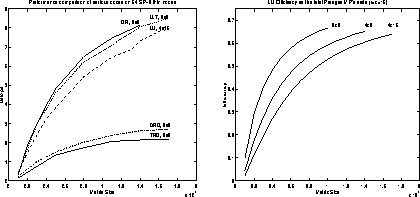

**Click here to view the left figure**

**Click here to view the right figure**

Most of the computation of the ScaLAPACK routines is performed in a blocked fashion using Level 3 BLAS, as is done in LAPACK. The computational blocking factor is chosen to be the same as the distribution block size. Therefore, smaller distribution block sizes increase the loop and index computation overhead. However, because the computation cost ultimately dominates, the influence of the block size on the overall communication startup cost and loop and index computation overhead decreases very rapidly with the problem size for a given grid of processes. Consequently, the performance of the ScaLAPACK library is not very sensitive to the block size, as long as the extreme cases are avoided. A very small block size leads to BLAS 2 operations and poorer performance (see section 3.3). A very large block size leads to computational imbalance.

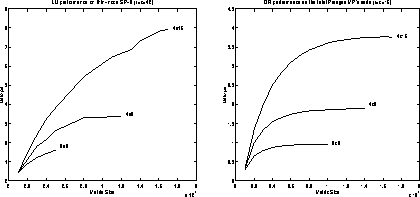

**Click here to view the left figure**

**Click here to view the right figure**

**Click here to view the left figure**

**Click here to view the right figure**

The chosen block size impacts the amount of workspace needed on every process. This amount of workspace is typically large enough to contain a block of columns or a block of rows of the matrix operands. Therefore, the larger the block size, the greater the necessary workspace, i.e the smaller the largest solvable problem on a given grid of processes. For Level 3 BLAS blocked algorithms, the smallest possible block operands are of size . Therefore, it is good practice to choose the block size to be the problem size for which the BLAS matrix-multiply GEMM routine achieves 90 % of its reachable peak.

**Click here to view the left figure**

**Click here to view the right figure**

Determining optimal, or near optimal block sizes for different environments is a difficult task because it depends on many factors including the machine architecture, speeds of the different BLAS levels, the latency and bandwidth of message passing, the number of process available, the dimensions of the process grid, the dimension of the problem, and so on. However, there is enough evidence and expertise for automatically and accurately determining optimal, or near optimal block sizes via an enquiry routine. Furthermore, for small problem sizes it is also possible to determine if redistributing data items is an acceptable cost in terms of performance as well as memory usage. In the future, we hope to calculate the optimal block size via an enquiry routine.

**Click here to view the left figure**

**Click here to view the right figure**
