Example 1

The band storage scheme is illustrated by the following example, where $n=9$ and $kd = 2$, making $size({\bf AB},1) = 3$ and $size({\bf AB},2) = 9$:


\begin{displaymath}
A = \left( \begin{array}{rrrrrrrrr}
a_{11} & a_{12} & a_{13...
...\\
& & & & & & a_{97} & a_{98} & a_{99}
\end{array} \right)
\end{displaymath}

where $a_{ij} = \mbox{conjg}(a_{ji}) \;\; \mbox{for} \;\; i,j = 1, \cdots, 9.$

\begin{displaymath}

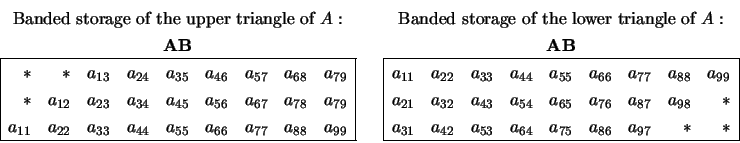

\begin{array}{c} \mbox{Banded storage of the upper triangle...
...86} & a_{97} & \ast & \ast \\
\hline \end{array} \end{array} \end{displaymath}

Elements marked $\ast$ are not used by the routine.
